Package com.tonbeller.wcf.ui

Provides an API to create and manipulate a DOM tree that conforms to the xoplon DTD.

See:
Description

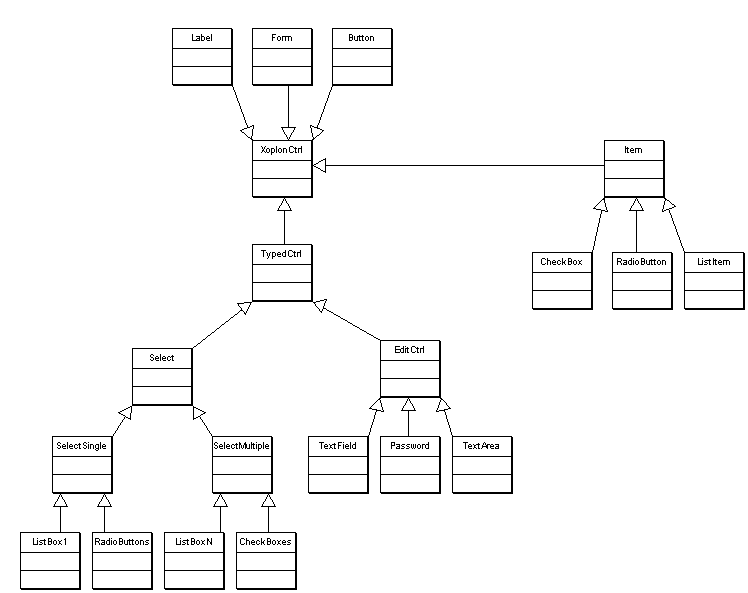

Class Summary

Button	Button ctrl class, used as factory for generating buttons
CheckBox
CheckBoxes	Deprecated. - does this make sense?
EditCtrl	has a value, type and format string.
FileUploadCtrl
Form	Form ctrl class, used as factory for generating buttons
ImgButton	Button ctrl class, used as factory for generating buttons
Item	base class factory for ListItem, RadioButton, CheckBox
Label	Label ctrl class, used as factory for generating labels
ListBox1	single selection listbox
ListBoxN	single selection listbox
ListItem	factory for listbox item
Password	factory for generating password ctrls
RadioButton
RadioButtons	Deprecated. - does this make sense?
Select	A Select (ListBox, RadioButtons, etc) may have a type and modelReference.
SelectMultiple	Created on 07.11.2002
SelectSingle
TextArea	Factory class for generating text area ctrls, provides also access to the text area's special attributes
TextField	Factory class for generating text ctrls
TypedCtrl	A DOM element with attributes describing a data type.
XoplonCtrl	Base class for all Xoplon controls.

Package com.tonbeller.wcf.ui Description

Provides an API to create and manipulate a DOM tree that conforms to the xoplon DTD.

• xoplon.xml
• xoplon.dtd

Xoplon supports a set of controls like text input, button, listbox etc. which can be used for creating user interfaces by instantiating controls per API functions or by configuring UIs using an XML configuration file. The Xoplon controls are converted to HTML Controls using the xoplon.xsl stylesheet. Formatting and validation of Xoplon controls content are automized using the com.tonbeller.xoplon.format validator classes.

Supported controls

Xoplon supports now the following controls:

Simple Xoplon controls, access via configuration file and API
Xoplon Control	Meaning	HTML equivalent
textField	text input field	input, type=text
password	password input	input, type=password
textArea	text input ctrl, multiple rows	textarea
listBox	listbox supporting single or multiple selection	select
listItem	listbox item	option
checkBoxes	container for check boxes	n/a
checkBox	checkbox	input, type=checkbox
radioButtons	container for radio buttons	n/a
radioButton	radio button	input, type=radio
button	button	input, type=submit

Supported data types

Xoplon supports the following simple data types for text controls:

• string: string type
• int: integer type
• double: float type
• date: date type

Xoplon implements formatters and parsers for the descriped types which automize formatting and validation of user input. See packages com.tonbeller.xoplon.format and com.tonbeller.xoplon.convert.

Configuring Xoplon Controls via configuration file

Xoplon Controls can be configured using an XML configuration file:

<!-- Text control -->
<textField type="string" label="Text:" value="hello world"/>
<textField type="int"    label="Integer:" value="123"/>
<textField type="double" label="Double:"  value="1,23"/>
<!-- Password control -->
<password type="string" label="Password:" value=""/>

The type attribute specifies the data type used for formatting and validation, see above "Supported data types".

Accessing Controls via API

As an alternative to configuring Xoplon controls, they can be instantiated programmatically by using the control's static factory functions. Attributes like label, value etc. can be accessed/changed using the appropriate static getters/setters.

Document factory;
Formatter formatter; // see package com.tonbeller.xoplon.format for this one

TextField textField1 = TextField.createTextField(factory, TextField.STRING_TYPE);
TextField.setLabel(textField1, "Text:");
TextField.setValue(formatter, textField1, "hello world");

TextField textField2 = TextField.createTextField(factory, TextField.INT_TYPE);
TextField.setLabel(textField2, "Integer:");
TextField.setValue(formatter, textField2, new Integer(123));

etc.

The formatter for the setValue function supports type conform, locale specific and format string specific formatting/parsing of the value. See package com.tonbeller.xoplon.format.
